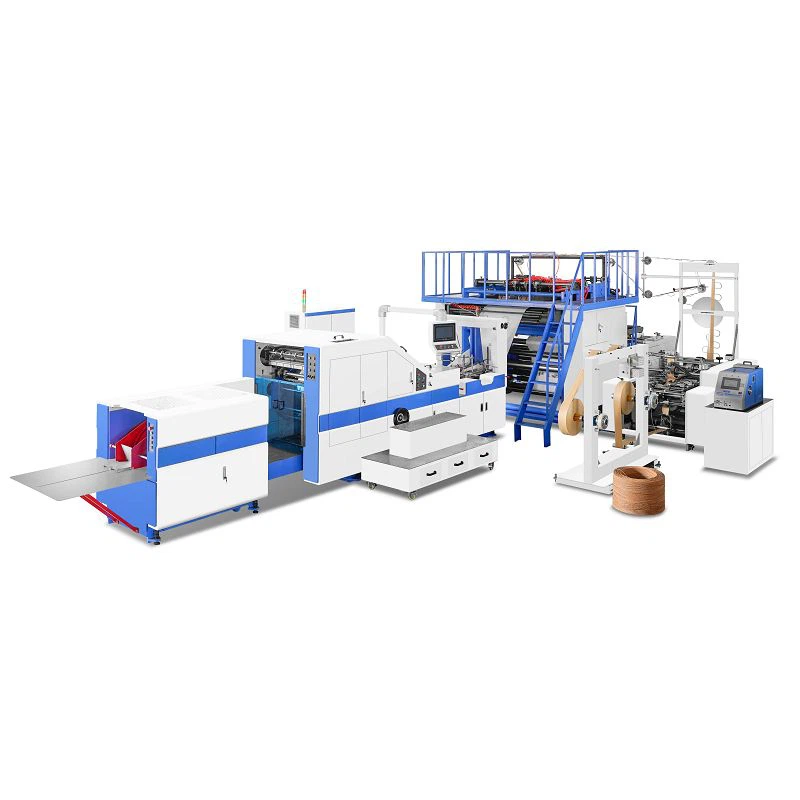

Round Handle Paper Hnab Tshuab

Cov qauv tsim tau txais kev sib haum xeeb adjustable ob-teev qauv (cov cuab yeej cuab tam), kom cov neeg siv ntau qhov ntau thiab tsawg ntawm cov hnab ntawv tsis tas yuav hloov cov qauv, uas tuaj yeem txo lub sijhawm ntawm lub hnab ntawv loj hloov thiab ua kom lub tshuab muaj peev xwm.

Xa kev nug

Hauj lwm lawm

Kev tsis

CHARACTERISTIC

01 Cov qauv tsim tau txais kev sib haum xeeb adjustable ob-teev qauv (cov cuab yeej cuab tam), kom cov neeg siv khoom sib txawv ntawm cov hnab ntawv tsis tas yuav hloov cov qauv, uas tuaj yeem txo lub sijhawm ntawm lub hnab ntawv hloov pauv thiab ua kom lub tshuab muaj peev xwm.

02 Cov qauv tsim tshwj xeeb zoo heev txhim kho lub hnab ntim khoom ntawm lub tshuab, uas tuaj yeem ua tau raws li cov neeg siv khoom' qhov kev thov ntawm kev tsim cov hnab ntim khoom loj ntxiv.

03 Lub tshuab hluav taws xob tswj hluav taws xob los ntawm Nyij Pooj tau txais los ua kom ruaj khov thiab ua haujlwm siab ceev

04 Cov khoom thauj khoom siv hydraulic tsis siv neeg nqa cov qauv, nrog kev tswj tsis siv neeg nruj.

05 cov khoom thauj khoom siv ARISE EPC system, txo cov khoom sib dhos lub sijhawm.

PARAMETER

KHOOM MUAG MODEL	ZXFD-180T	ZXFD-330T	ZXFD-460T
Daim ntawv txoj kab uas hla	≤1300mm	≤1300mm	≤1300mm
Core puab txoj kab uas hla	f76mm ua	f76mm ua	f76mm ua
Daim ntawv hnyav	45-130g	80-150g	80-150g
Lub hnab ntawv dav (nrog kov)	120-180 hli	200-330 hli	250-400 hli
Lub hnab ntawv dav (tsis muaj kov)	80-180 hli	140-330 hli	220-460 hli
Daim ntawv raj ntev (nrog kov)	191-330 hli	260-530 hli	280-500 hli
Daim ntawv raj ntev (tsis muaj kov)	191-430 hli	260-430 hli	280-600 hli
Hauv qab dav	50-120 hli	60-180 hli	90-200 hli
Tshuab ceev	150pcs / min	150pcs / min	150pcs / min
Tag nrho lub zog	32 kWm	23 / 42 kWm	34 kWm
Tshuab hnyav (nrog kov)	13 000 KG	16 000 KG	18 000 KG
Tshuab hnyav (tsis muaj kov)	7000 KG	9000	10000 KG
Tshuab dimension (nrog kov)	12×5×2.5 M	11×2.6×1.8M	15×5×2.5 M
Tshuab dimension (tsis muaj kov)	12×5×2.5 M	14×6×3 M	15×5×2.5 M

KUB MODEL	114 HH	152 HHH	152 hd ua	HD 190 Nws
Kov hlua qhov siab (mm)	102/115/ 125/140	102/115/ 125/140	102/115/ 125/140	115/125/ 140/150
Kov thaj dav	45-50 hli	45-50 hli	45-50 hli	45-50 hli
Kov thaj ntev	114.3mm 3	114.3mm ib	152.4mm 3	190.5 hli
Kov hlua txoj kab uas hla	Φ4-6 hli	Φ4-6 hli	Φ4-6 hli	Φ4-6 hli
Dia. ntawm tes daim ntawv yob	Φ1200 hli	Φ1200 hli	Φ1000 hli	Φ1200 hli
Kov daim ntawv yob dav	90-100 hli	90-100 hli	90-100 hli	90-100 hli
Kov thaj hnyav	100-120g	100-120g	100-120g	100-120g
Duab
